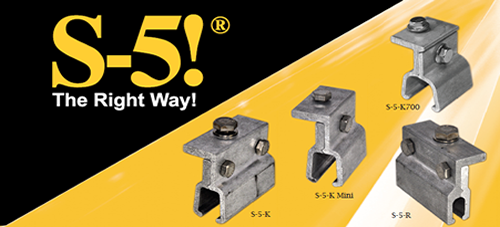

The S-5-K and S-5-K Mini clamps are designed for use on SpeedDeck and roofing types with similar profiles.
The S-5-K700 clamp was designed with patented S-5!® zero penetration technology for application
needs of the very distinctive roof profile of EuroClad’s Secret Fix System and roofing types with similar profiles.
The S-5-R clamp was specifically designed for those profiles manufactured by Rib Roof® and roofing types with similar profiles.
For load critical applications such as snow retention and attaching solar panels, the assembly should be specifically engineered to each individual project to ensure maximum hold. Installation is as simple as mating the clamp halves and starting the M8 bolts. Position clamp on seam and tighten the M8 bolt with a ratchet or electric tool while securing the clamp with a locking C-clamp.

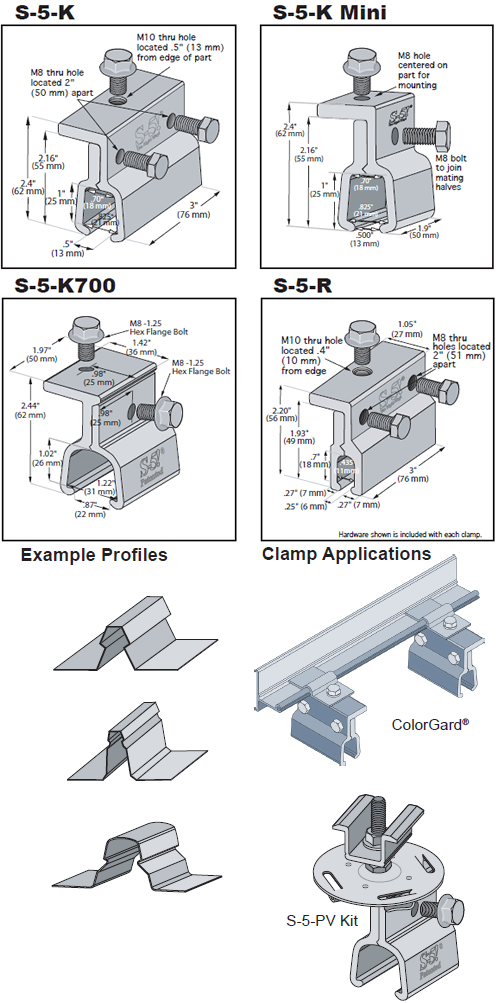

The S-5-K, S-5-K Mini, S-5-K700 and S-5-R clamps are each furnished with the hardware shown below. A structural aluminium attachment clamp, the S-5-K, S-5-K Mini, S-5-K700 and S-5-R is compatible with
most common metal roofing materials excluding copper. All included hardware is stainless steel.
The S-5-K, S-5-K Mini, S-5-K700 and S-5-R clamps have been tested for load-to-failure results on relevant profiles from leading manufacturers. Please see downloads below for more information including brochures and installation guides.
